· Material: NY P5-Q
· Layer Count: 78 Layers (3×26L Build-up)
· Board Thickness: 15.2 mm
· Panel Size: 460 mm × 380 mm
· Structure: N+N+N
· Aspect Ratio: 25:1（Sub）
· BGA Pitch: 0.80 mm
· Warpage: 0.30%
· Stub Length: 150±50 um
· Impedance Tolerance: ±8%

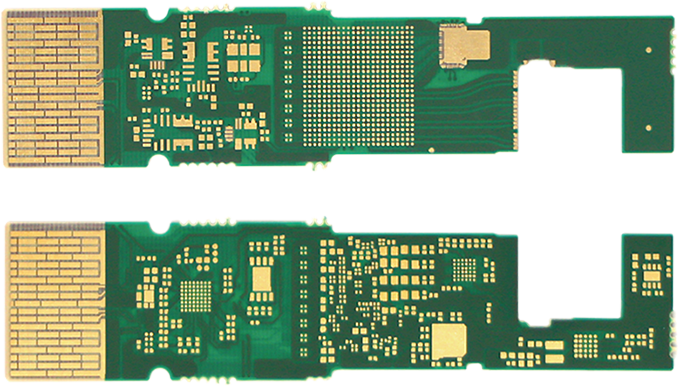

· 26-Layer 7 Steps HDI with ENIG + Gold Finger High Speed Digital
· EMC EM-890K
· 7 Steps 0.1mm Micro-via + Buried Via +Through hole design
· 28-Group impedance with tolerance ±10%
· Decapping, Stepped gold fingers

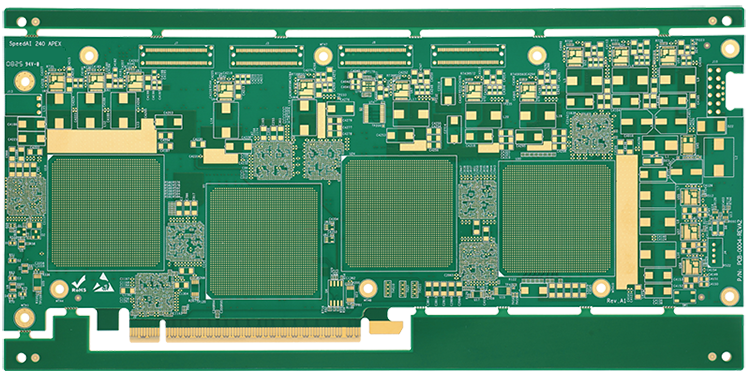

· 20-Layer ENIG and Back-drill High Speed Digital
· Panasonic R-5785(GN)
· 10 Different back drill depth
· Aspect ratio of 19:1
· 24-Layer Immersion Tin with Backdrill High Speed Digital
· S7439C
· 3 Different back-drill depth
· 16-Layer 6oz Heavy Copper and Thick Board Thickness
· TUC TU-865
· 8.4mm ultra-thick board
· Depth controlled drilling
